Magnetic Beads Particle Size Distribution Analysis Service

Magnetic beads have emerged as a cornerstone technology in biomedical research, clinical diagnostics, and biopharmaceutical manufacturing, owing to their unique combination of magnetic responsiveness and customizable surface chemistry. From cell separation and protein purification to nucleic acid extraction and targeted drug delivery, their performance is inherently linked to a critical physical parameter: particle size distribution. Even minor variations in the size of magnetic beads can drastically alter their functional properties—for example, smaller beads exhibit enhanced surface area-to-volume ratios ideal for high-sensitivity diagnostics, while larger beads offer stronger magnetic forces for efficient bulk separation. A narrow, well-characterized particle size distribution ensures consistency in magnetic responsiveness, binding capacity, and biocompatibility, directly impacting the reliability of experimental results and the scalability of industrial processes.

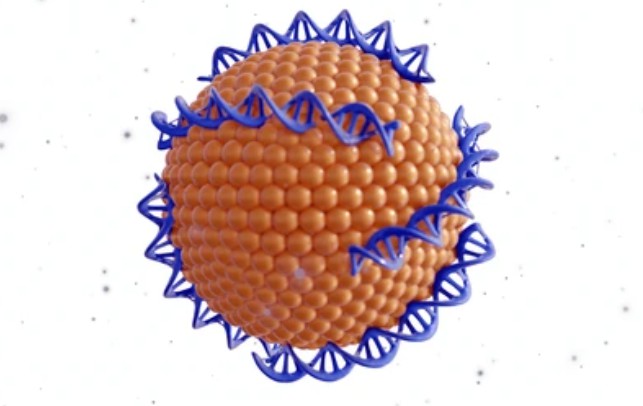

Figure 1. Magnetic Bead.

Overview

Accurately measuring and analyzing magnetic bead particle size distribution is a complex task that requires specialized instrumentation, technical expertise, and adherence to rigorous quality control standards. Many research laboratories and biotech companies lack access to state-of-the-art analytical tools or the in-house capability to interpret complex size distribution data. This is where CD Bioparticles steps in. As a global leader in the development and characterization of functional particles, we offer a comprehensive Magnetic Beads Particle Size Distribution Analysis Service tailored to address the unique needs of our clients. Our service combines cutting-edge technology, seasoned scientific professionals, and a client-centric approach to deliver precise, actionable insights that drive innovation and ensure product quality.

Our Services

CD Bioparticles employs a multi-technique approach to deliver a complete and accurate picture of your magnetic beads' size distribution. We understand that no single method provides all the answers, which is why we leverage complementary techniques.

Dynamic Light Scattering (DLS) / Photon Correlation Spectroscopy (PCS)

This is our primary technique for analyzing the hydrodynamic diameter of particles in suspension.

• Principle: DLS measures the fluctuations in scattered light caused by Brownian motion to calculate the size of particles.
• What We Measure: Intensity-based mean diameter (Z-Average) and the Polydispersity Index (PDI). We also provide intensity, volume, and number distribution graphs for a comprehensive view.
• Ideal For: Characterizing beads in the nano- to sub-micron range (0.3 nm to 10 µm), assessing colloidal stability, and routine QC due to its speed and high resolution for monodisperse samples.

Laser Diffraction (LD)

This technique is excellent for measuring a wide range of sizes and is less sensitive to a small population of large aggregates or fines.

• Principle: LD analyzes the angular variation in the intensity of light scattered as a laser beam passes through a dispersed sample to calculate the PSD.
• What We Measure: A volume-based size distribution over a broad dynamic range (0.01 µm to 3500 µm). We report key percentiles like Dv10, Dv50, and Dv90.
• Ideal For: Analyzing larger magnetic beads (above 1 µm) and samples with a broader size distribution. It provides excellent statistics as it analyzes a large number of particles.

Electron Microscopy (EM) Analysis

For direct, visual confirmation of size and morphology, we offer imaging services.

• Scanning Electron Microscopy (SEM): Provides high-resolution, topographical images of beads deposited on a substrate, allowing for precise measurement of the dry-state diameter of individual particles.
• Transmission Electron Microscopy (TEM): Offers even higher resolution, capable of visualizing the internal core-shell structure of the beads while providing size data.
• Ideal For: Validating DLS/LD data, investigating morphology, confirming monodispersity at the single-particle level, and identifying aggregation.

Key Applications

Our service is critical for a wide array of applications and clients:

• Quality Control for Bead Manufacturers: Ensuring batch-to-batch consistency and adherence to strict product specifications.
• Research & Development: Screening and optimizing new magnetic bead formulations during the development phase.
• In Vitro Diagnostic (IVD) Kit Development: Validating that the beads used in diagnostic assays meet performance criteria for sensitivity and reproducibility required for regulatory submissions.
• Bioprocessing and Purification: Verifying the size characteristics of beads used for protein purification or nucleic acid extraction to guarantee high yield and purity.
• Troubleshooting and Failure Analysis: Investigating the root cause of performance issues in magnetic bead-based applications, such as inconsistent binding or poor separation.

Our Process

Our approach is highly collaborative, ensuring the final product meets your exact specifications:

Our Advantages

Particle Size Distribution is a non-negotiable quality attribute for magnetic beads that directly impacts the success of your scientific or diagnostic endeavors. In a competitive landscape where precision and reliability are paramount, comprehensive PSD analysis is an indispensable investment. CD Bioparticles' Magnetic Beads Particle Size Distribution Analysis Service provides the definitive characterization you need to ensure product quality, accelerate development, and build confidence in your magnetic bead-based technologies. With our multi-technique approach, expert analysis, and commitment to customer success, we provide the critical data foundation for your innovation.
